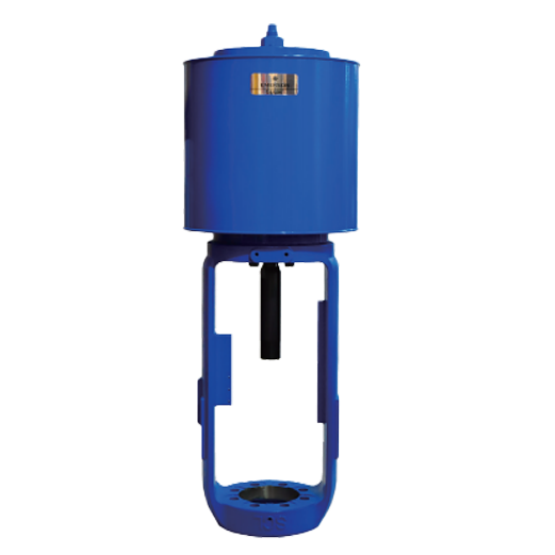

GULDE 8200 Thrust up to 282,464N (66,120 lbf)
The actuator can be used at temperatures as low as -29°C and as high as 93°C. Low-temperature versions as low as -40°C are also available to meet customer requirements.
The actuators 200-250 have a standard stroke of up to 140 mm (5.5 inch), and the actuators 300-700 have a standard stroke of up to 203 mm (8 inch).
Dual built-in tie rod design: The GULDE 8200 actuator features a built-in tie rod design made of high strength alloy material; the built-in tie rod protects the actuator from corrosion and physical damage from the external environment and provides built-in guidance to the piston, which prolongs the service life of the seals, thus increasing the overall service life of the actuator.
- Easy to install and maintain
The interface between the actuator and the valve conforms to the DS 79 standard for easy connection to the valve.
Corrosion-resistant design: The GULDE 8200 actuator is coated internally and externally with a corrosion-resistant coating that protects the actuator under different operating conditions.
