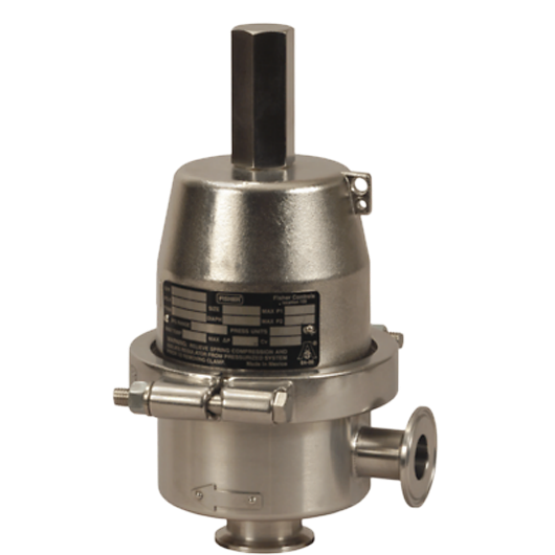

FISHER SR8 Series Regulators

Main Features

Nonporous polished body and internals for high purity processing
Wide control range, self-draining, clean in place or steam in place
Easy maintenance, tight shutoff, highly stable, superior flow performance and accuracy
Optional diaphragm support, 316L diaphragm with long cycle life
Covered Adjusting Screw, sanitary design standards
Optional T-Handle Available，remote Setpoint Capability

Specifications

Connection Size: NPS 1/2, 3/4, 1, 1-1/2 x 1, 1-1/2, 2, and 3
Pressure Range: 0.14 to 9.3 bar / 2 to 135 psig
Maximum Inlet Pressure: 14.5 bar / 210 psig
Maximum withstand temperature 204°C / 400°F
Maximum Flow Capacity: 3096 kg/h / 6820 lbs/h
Operation Type: direct-operated
Body Material: 316L stainless steel and 0.5 μm/20 μin Ra

Applications

The Type SR8 backpressure regulator is a compact, large capacity, direct-operated backpressure regulator. It is designed for use in applications where a sanitary design is essential, such as pharmacuetical, biotech, or food and beverage industries.
